	Build a 35mm Lens Adapter, Pg. 3

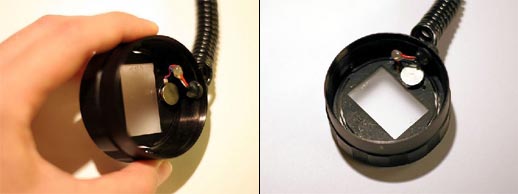

After you glued the GG-holder into the tube put the phone cable through the hole and solder it to the vibrating motor. Fix the cable with hot glue or silicone. Take care that the motor cables have enough space to move or the vibration won't work properly!

The adapter should look like this. You have only to screw the other things (spacer ring, macro lens, step up ring …) on it and its done.

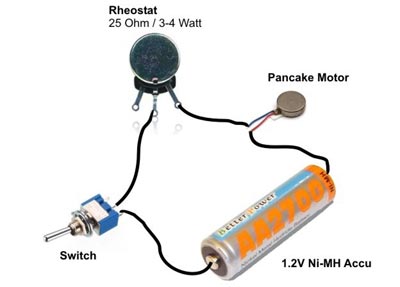

Here is how to connect the whole thing to work properly!
With the rheostat you can now control the voltage of the motor (0.8 – 1.0 V) for proper vibration.

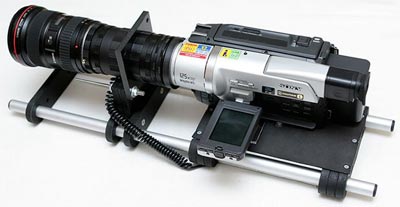

Here is my vibrating DIY 35mm DOF Adapter for Canon EOS Lenses!

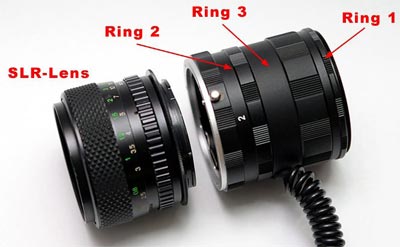

Instead of the spacer rings, I used two sets of cheap Canon EOS extension tubes.

Have fun!

To download a video version of this tutorial, click on this download link.

To download a combined .PDF of these tutorials (with an optional conversion for the Canon HV20/Sony HC1), click on this download link.

To download a .zip file with graphic tutorials that include how to position the ground glass, how to line up the different components, setting up the Canon focusing screens, a conversion for the DVX100/HVX200 cameras, and more, click on this download link.
