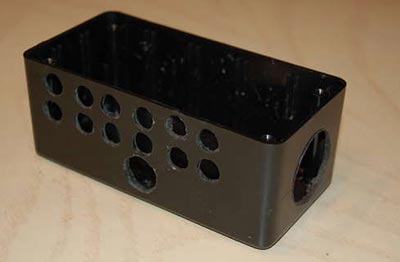

Step 5: Prep the housing... Now it is time to drill all of the holes in the project box. I drilled 12 holes for the LED array. A large hole (using a hole saw) for the viewfinder, 3 holes for the switch, power indicator LED and phono jack.

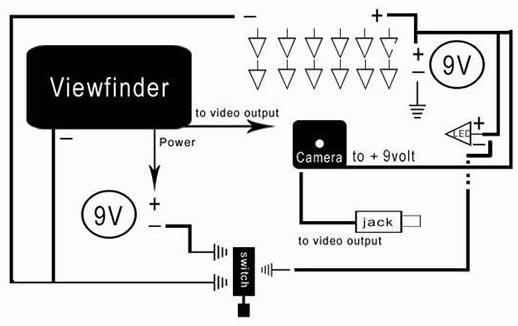

Step 6: Install all of the components... Time to install all of the components and wire according to the schematic. Be sure to test each compnent along the way. Basically all grounds go to and out of the switch. The LED array, micro camera and power LED are powered by one 9 volt battery and the viewfinder is powered by another.

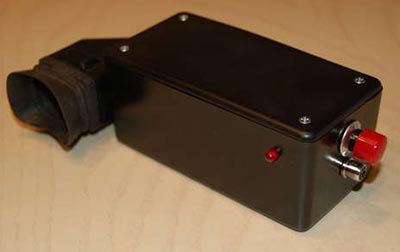

Step 7: Close it all up and test it out! You will be amazed at the brightness of these LED's in perfectly dark environment. With the right low-lux camera you can see in complete darkness since the infrared LED's generate light at a frequency that the camera can see. And, you can record what you see by taking the video out to a camcorder! Stealth at it's finest!
Watch the video and see the Test Results and then build your own!
